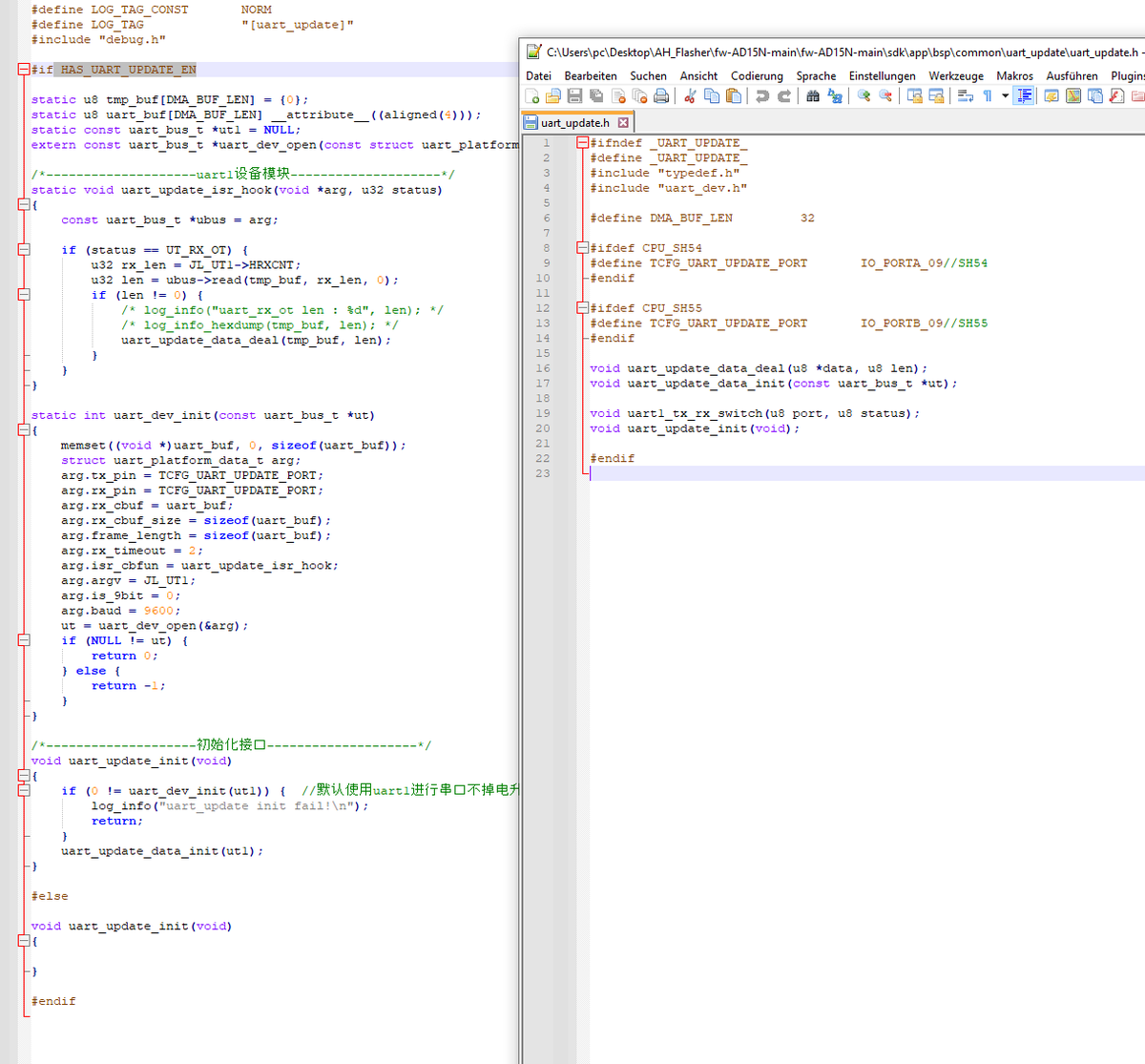

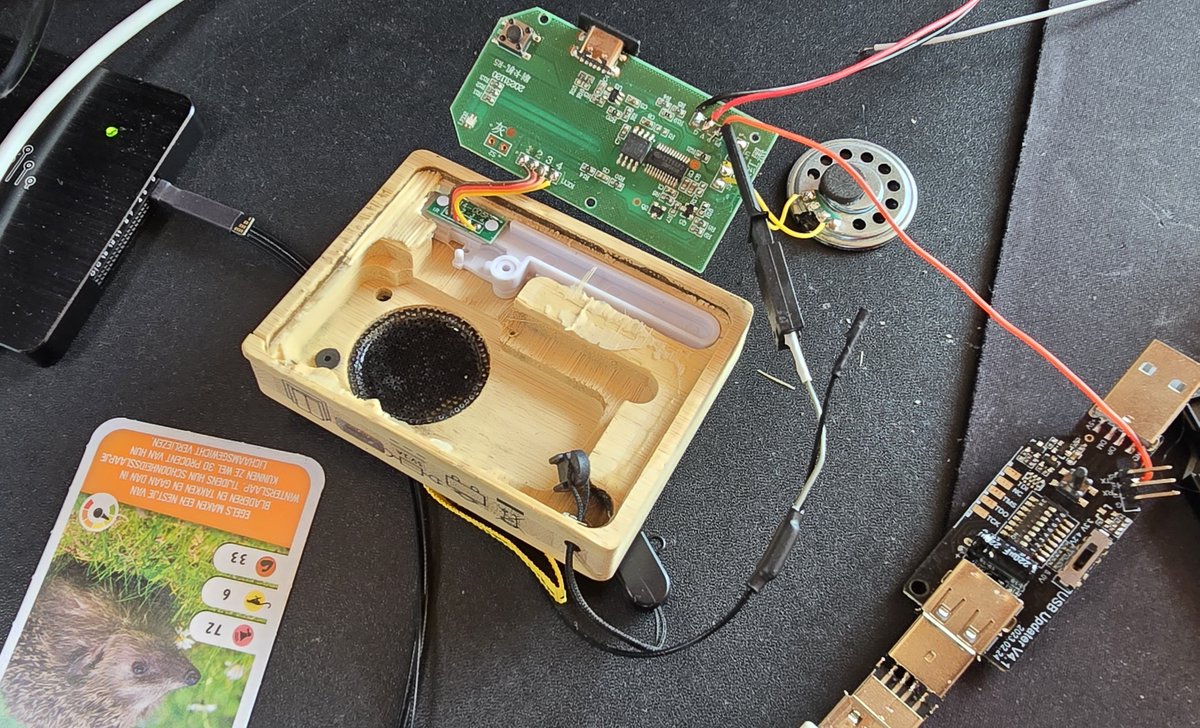

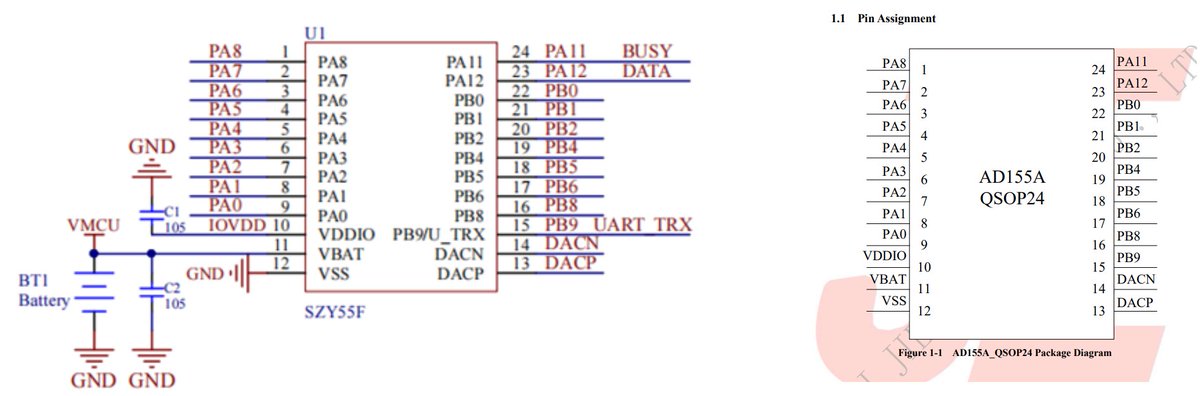

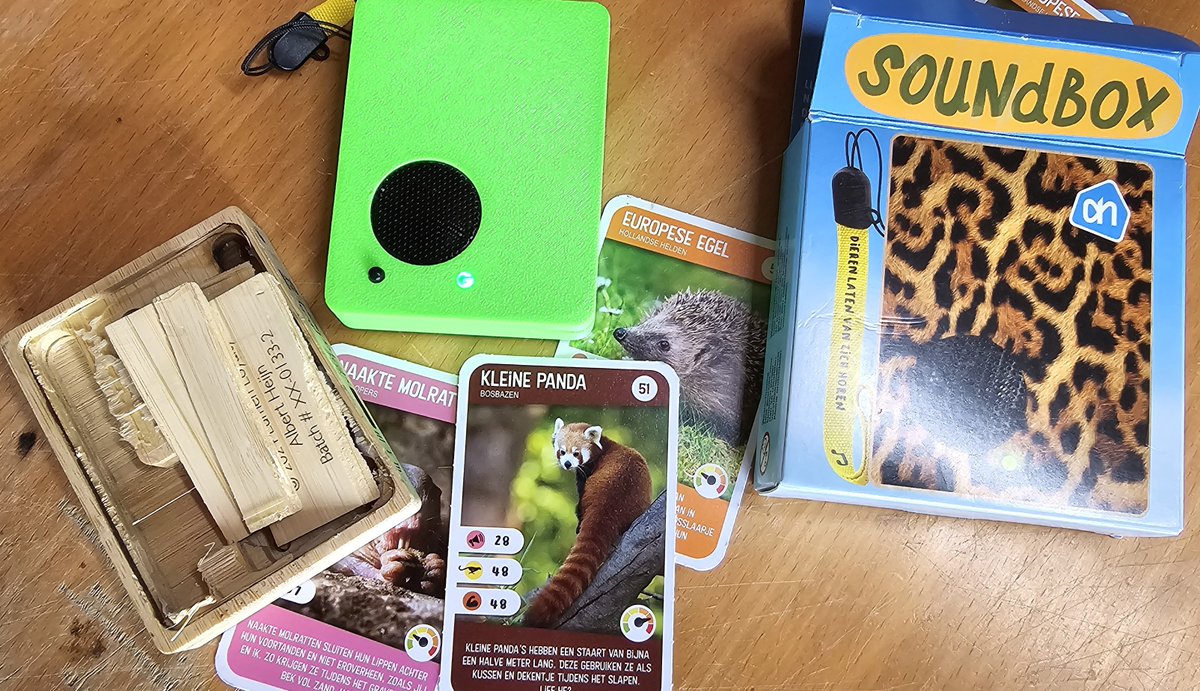

Not too much success reading or writing the Albert Heijn Sound box SoC (Big thanks to @jilles_com for the great donation) Looks like the UART Debug/Flashing Bootloader on GPIO PB9 is only a Software feature and not enabled in that Firmware 🥲🥲 SDK: https://github.com/Jieli-Tech/...
@atc1441 @jilles_com is it a Jelly again, indeed?

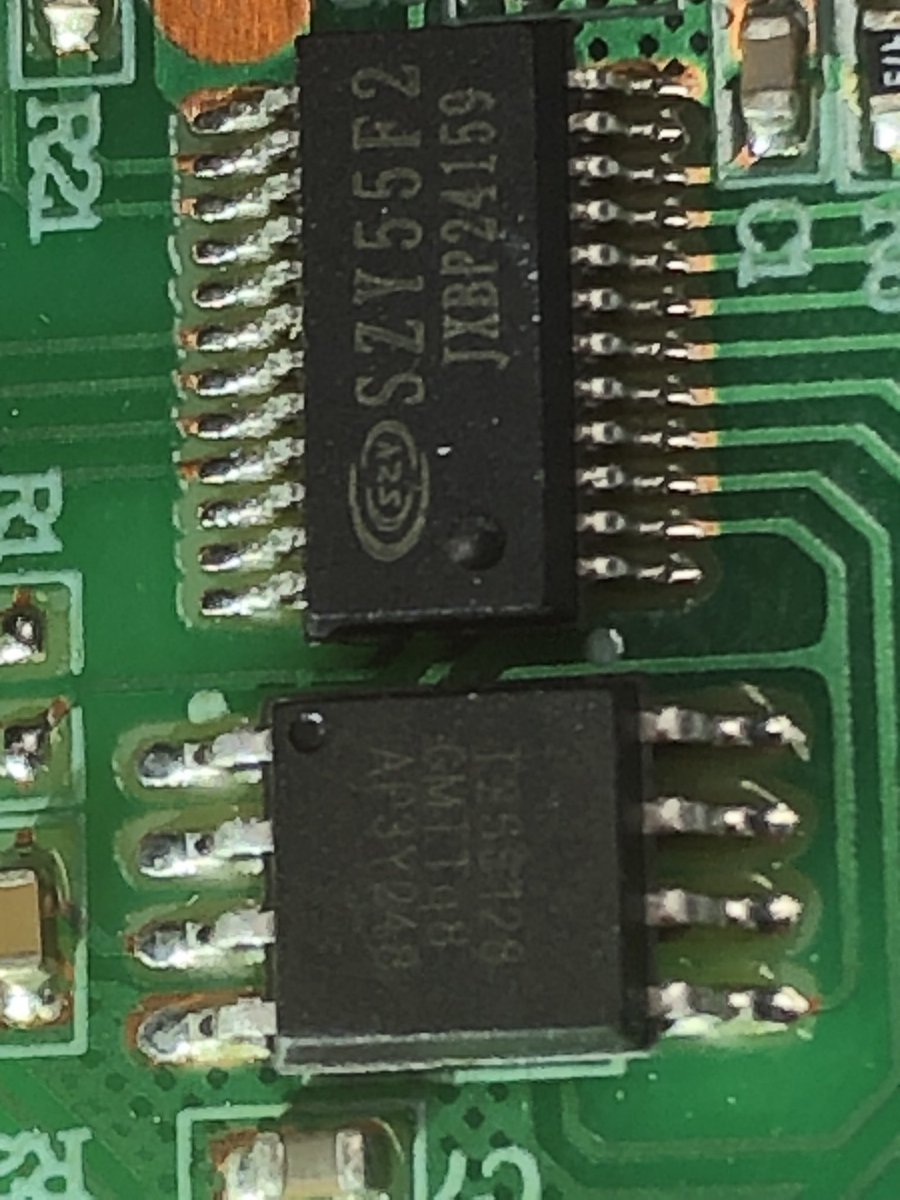

@EduardVonFeek @jilles_com It is some undefined Collab between them. Unclear which company uses the design from another or both are the same in then end 😅 SZY vs Jieli

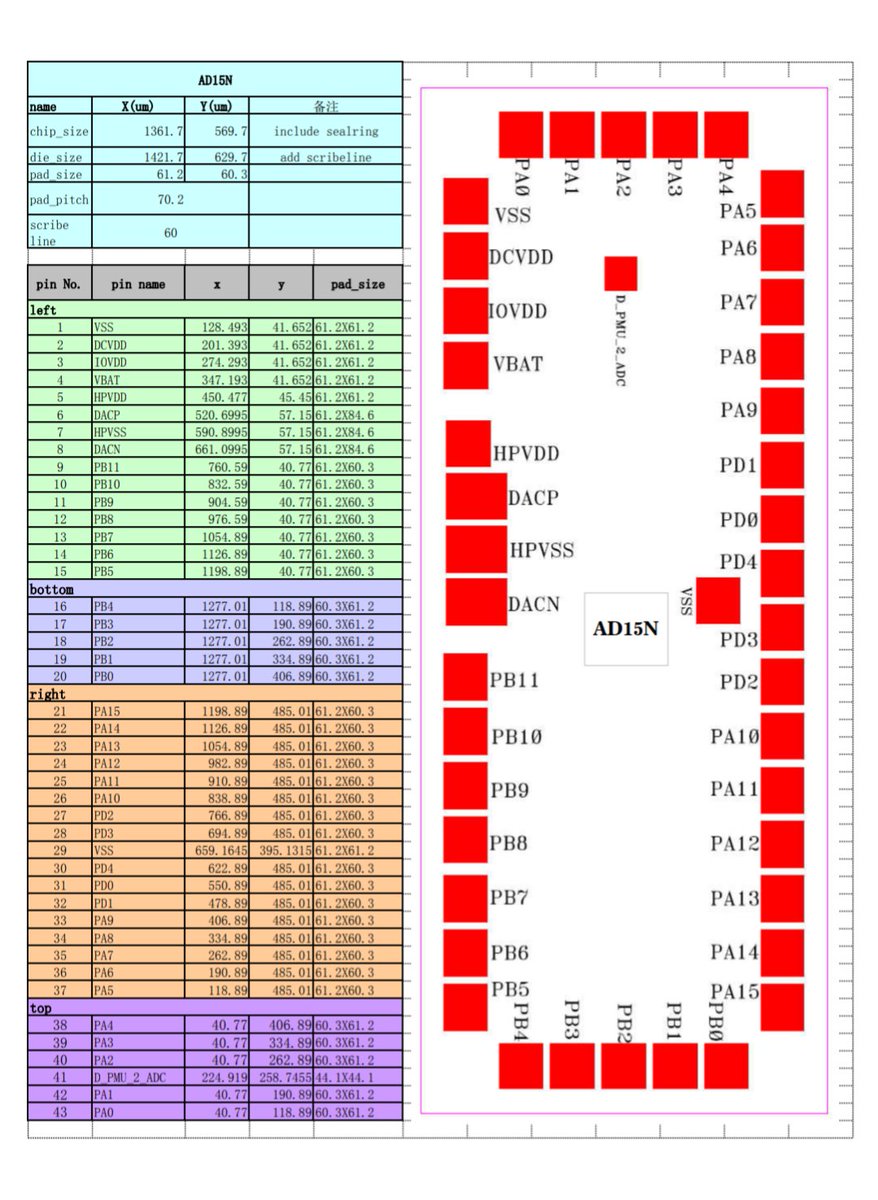

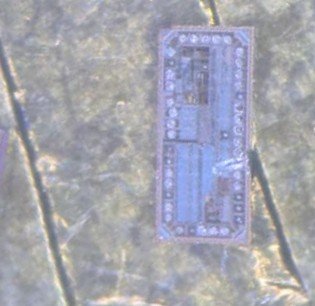

@atc1441 @jilles_com yo, the die from the decapped Albert Heijn SZY looks identical to the JieLi's. https://forum.revspace.nl/t/re... https://gitee.com/Jieli-Tech/f...
@EduardVonFeek @atc1441 @jilles_com And, do you already have the new “mini handscanner” from Albert Heijn? 🙂 https://www.ah.nl/producten/pr...
@EduardVonFeek @atc1441 @jilles_com Looks like they have a small optical scanner with infrared leds
@basst85 @EduardVonFeek @atc1441 @jilles_com Onbegrijpelijk hoe het werkt, je houdt de lange (!) barcode van het product er TEGENAAN. Hij zou dus maar een deel zien? Incomprehensible how it works, you hold the long(!) barcode of the product AGAINST it. It would only see part of it?
@joenvanaken @EduardVonFeek @atc1441 @jilles_com Looks like there is some sort of dotcode “hidden” inside the larger (fake) barcode
@basst85 @joenvanaken @EduardVonFeek @jilles_com Ah yeah :D Scratch my other answer then. So really like in the TipToi pens
@atc1441 @joenvanaken @EduardVonFeek @jilles_com Yeah, it looks like this technology from Anoto https://en.wikipedia.org/wiki/...
@basst85 @joenvanaken @EduardVonFeek @jilles_com You got some pictures from the inside ?
