See below for Wassenaar Arrangement guidelines for ADC & DACs. Chart provides better visual overview. Basically, nothing over 1.3GSPS for 8-bit resolution, 600MSPS for 10-bit, 400MSPS for 12-bit, 250MSPS for 14-bit & 65MSPS for 16bit+.

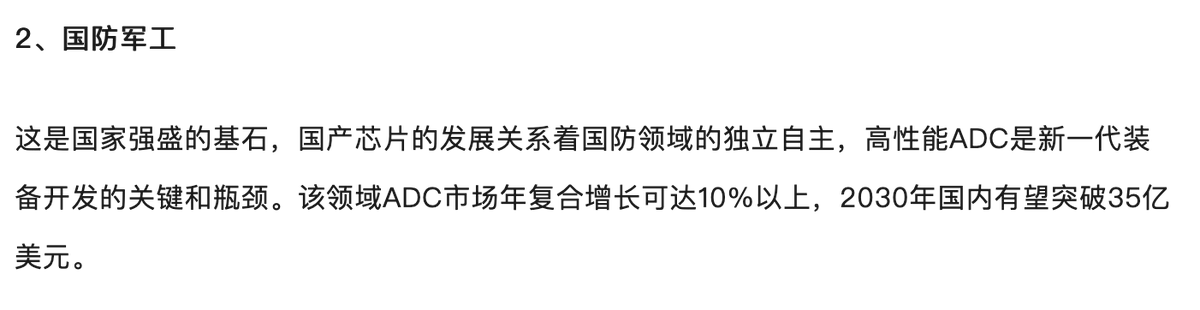

Now, China really need high speed ADCs for the development of its 5G/6G telecom, THz communication & commercial satellites. It expects $6.5B mkt size just in telecom by 2030 + Industry 4.0/automation, oscilloscopes & MRI machines & military mkt for radar signal conversion.

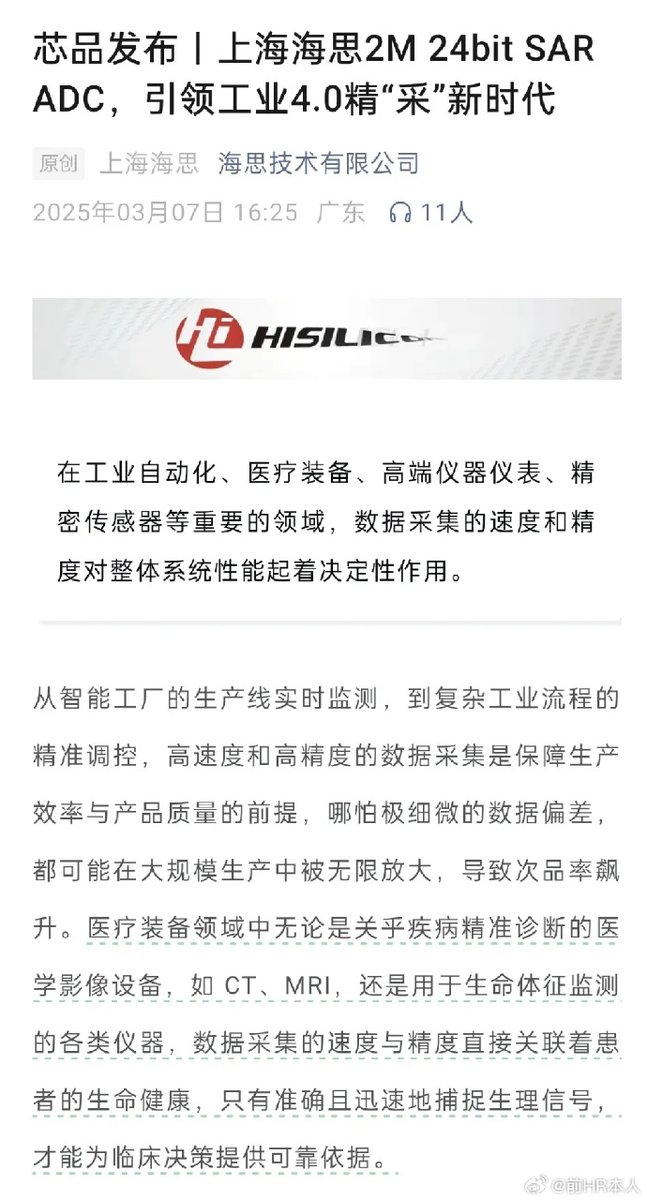

I was first made aware of China's efforts in ADCs earlier this yr when Hisilicon came out w/ a leading 24-bit resolution ADC @ 2MSPS sampling that was comparable in performance to ADI’s AD4630-24. https://www.ctol.digital/news/... era of uncontested dominance for ADI & TI in ADC is over

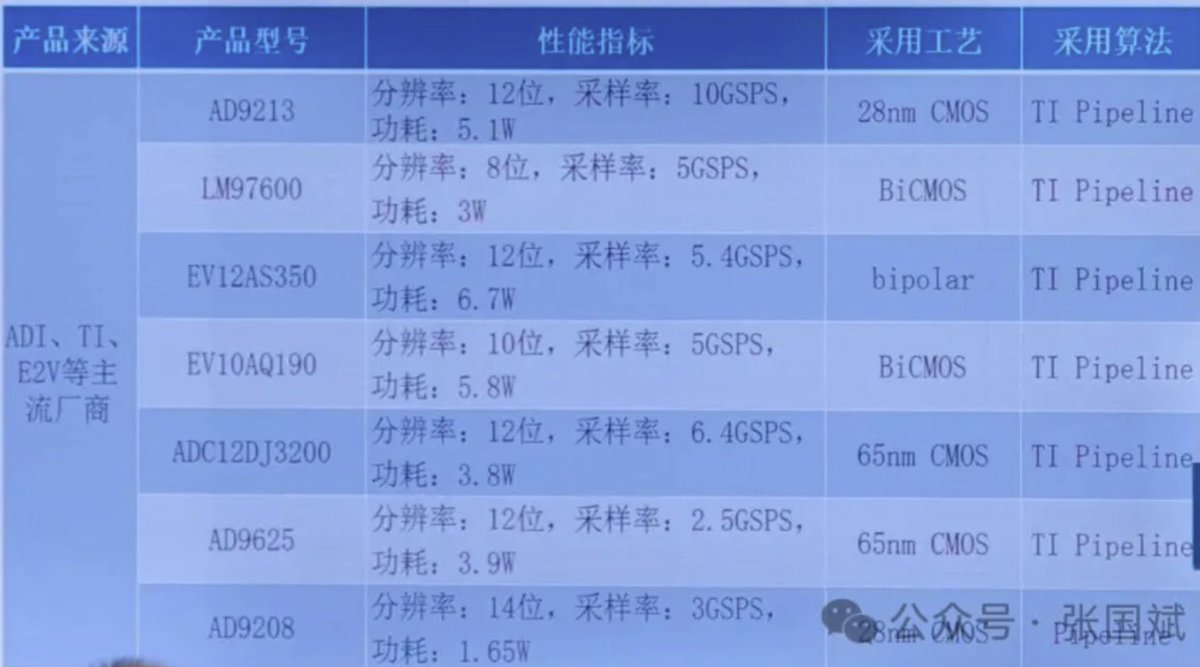

Subsequently, I was made aware of the much large 8 to 14 bit mkt that ADI/TI dominated w/ various 28-65nm process analog chips that allowed sampling frequencies of 1-10GSPS. In order to compete, China needs to be able to fab 28nm analog chips well. SMIC only got there recently.

Once SMIC got good w/ the entire 28nm product line, domestic chip designers like CEC worked w/ them to design advanced 8-bit ADC. HWD08B64GA1 came out in 2024 & smashed records w/ 64GSPS sampling & has started production & delivery. See the difference w/ new chip @ 20 GHz.

They are not the only one. Acela Micro also in came out w/ a 8-bit 56 GSPS ADC recently. China always seems to have multiple competitors once the tech & supply chain is ready for it.

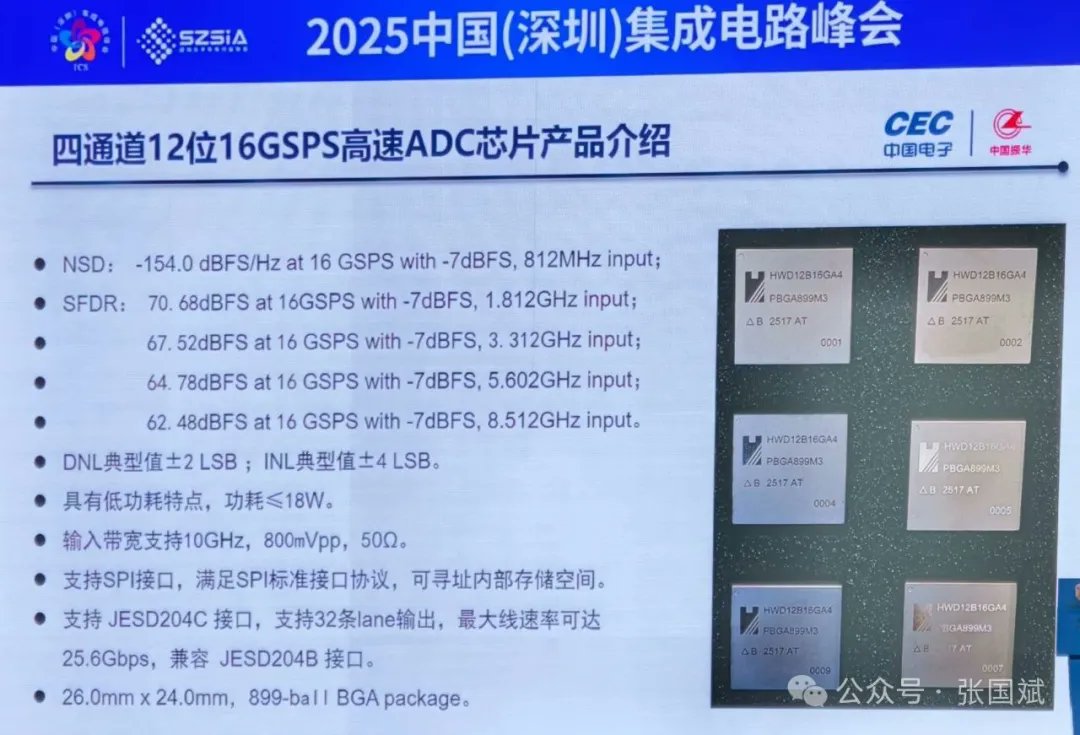

In June of this yr, CEC made further news by coming out w/ a 16GSPS 12-bit 4 channel high speed ADC. This would support 10GHz wide band. It is actually internationally leading in performance.

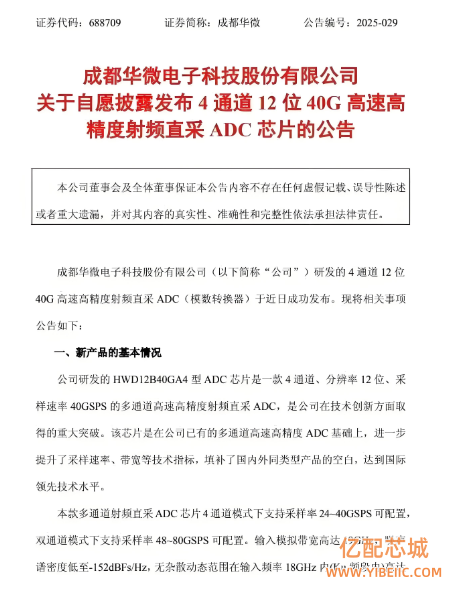

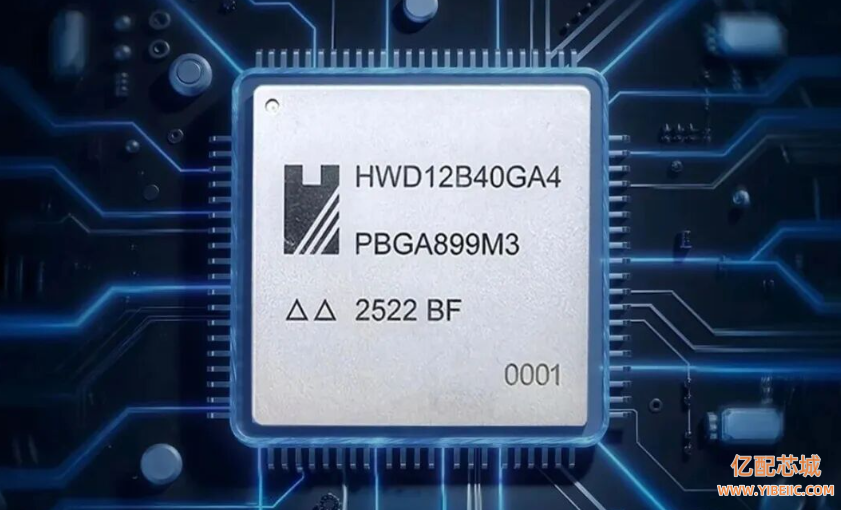

Things did not stop there. CEC came out w/ an even better ADC just 3 months later. This was like the previous one, except that it is now capable of 40GSPS sampling! Using 2 allows 80GSPS, which allows 19 GHz analog input bandwidth, covering multi-band HF signals like Ku-band.

There are many applications that would require converting from analog to digital signals at up to 19GHz, but I will just use this diagram of the following RF MMIC to show how critical ADC is @ taking amplified+filtered waves & converting them to 0s & 1s for digital processor.

In fact, if you think about anything that needs to go from physical world to digital world, it would need such a converter. The higher sampling you can do, the higher freq band you can go. The higher bit, the better resolution you get & more accuracy in this conversion.
